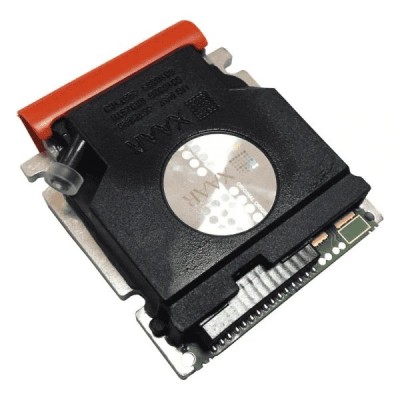

Xaar 128/40W Printhead - XP12800009

Xaar 128/40W Printhead – XP12800009 – High-Performance Inkjet Solution

The Xaar 128/40W Printhead (Part# XP12800009) delivers consistent and highly flexible inkjet performance, making it an ideal choice for producing eye-catching marketing media across wide-format graphics and coding & marking applications.

This printhead is compatible with a broad range of inks, including oil-based, solvent, and dye sublimation varieties. It serves as a direct replacement for the discontinued Xaar 126/35 and Xaar 126/50 printhead models.

Technical Specifications

• Tag: Light grey tag
• Active Nozzles: 128
• Print Swathe Width: 17.4 mm
• Nozzle Pitch: 137.1 μm
• Nozzle Density: 185 npi
• Drop Velocity: 6 m/s
• Printhead Weight: 15.5 g
• Dimensions: 37.2 x 40.8 x 11.3 mm
• Drop Volume: 40 pl
• Typical Firing Frequency: 8.3 kHz

Compatible Printer Models

This printhead works with the following printer models:

Algotex

• Rainbow 325
• Rainbow 250

Allsign

• HX3204S
• HX3208S
• HX3212S
• HX3216S

Aprint

• Vinylking 160
• 330 Speedy

Azon

• UV 1600 FR

DGI

• XP-3204T

Gerber

• Solara UV2

Graphtec

• Signjet Pro JS300
• SignJet JS501

Infiniti

• Fina160A
• Fina180TX
• Fina250A
• Fina320B
• Orasign W-Jet 160+
• Orasign W-Jet 180+
• Orasign W-Jet 320+

Rodin

• 1802
• 1804

Sun Innovations

• New Drakar
• New Drakar Pro

Teckwin

• TeckStar 18
• TeckStar 25

Yaselan

• Picasso YSL-D1600FBUV

Yat Fung Digital

• Xplorer YF-1232 III
• Xplorer YF-8180 III Plus
• Xplorer YF-8250 III Plus
• Xplorer YF-8320 III

Upgrade your printing setup with the reliable and versatile Xaar 128/40W – engineered for consistency across diverse ink types and applications.
