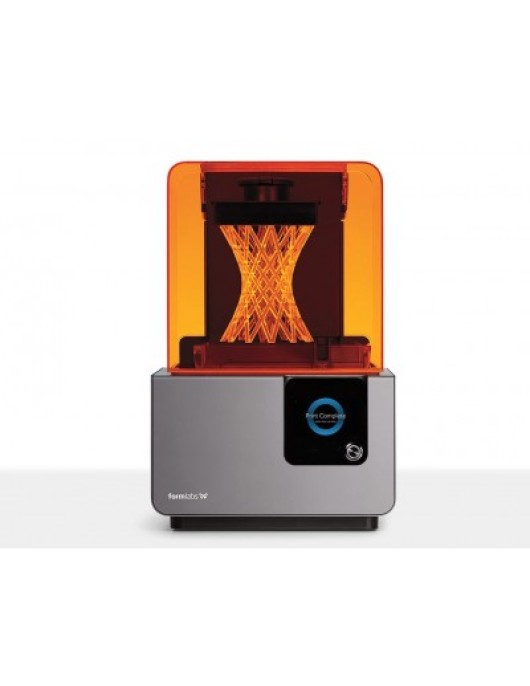

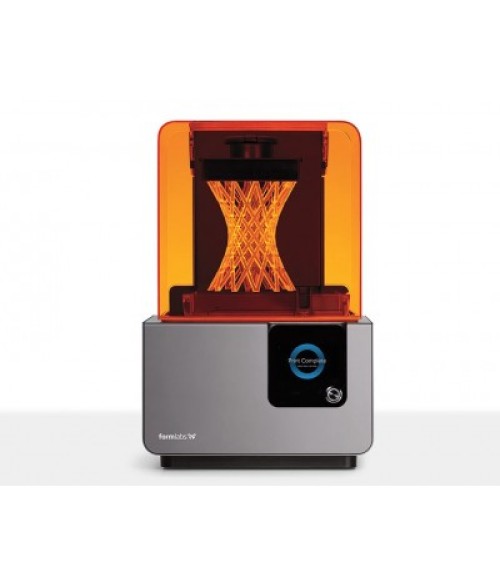

Form 2 3D Printer

Hardware

Dimensions

35 × 33 × 52 cm

13.5 × 13 × 20.5 in

Weight

13 kg

28.5 lbs

Operating Temperature

Auto-heats to 35° C

Auto-heats to 95° F

Temperature Control

Self-heating Resin Tank

Power Requirements

100–240 V

1.5 A 50/60 Hz
65 W

Laser Specifications

EN 60825-1:2007 certified

Class 1 Laser Product
405nm violet laser
250mW laser

Connectivity

Wifi, Ethernet and USB

Optical Path

Protected

Printer control

Interactive Touch-screen with Push-button

Printing Properties

Technology

Stereolithography (SLA)

Peel Mechanism

Sliding Peel Process with wiper

Resin Fill System

Automated

Build Volume

145 × 145 × 175 mm
5.7 × 5.7 × 6.9 in

Layer Thickness (Axis Resolution)

25, 50, 100 microns
0.001, 0.002, 0.004 inches

Laser Spot Size (FWHM)

140 microns
0.0055 inches

Supports

Auto-Generated
Easily Removable

PreForm Software

System Requirements

• Windows 7 and up
• Mac OS X 10.7 and up
• OpenGL 2.1
• 2GB RAM

Hardware Requirements

Formlabs Form 2 3D Printer

Features

• Simple print setup
• Auto-orient for optimal print position
• Auto-mesh repair
• Auto-generation of supports
• Rotation, scaling and duplication
• Layer slicer for path inspection
• .STL and .OBJ file input
• .FORM file output

Finish Kit

Includes

• Scraper
• Pre and Post-Rinse Tubs
• Rinse Basket
• Squeeze Bottle
• Flush Cutters
• Tweezers
• Disposable Nitrile Gloves
• PEC*PAD Wipes
• Microfiber cloth
• Removal Tool
• Removal Jig
