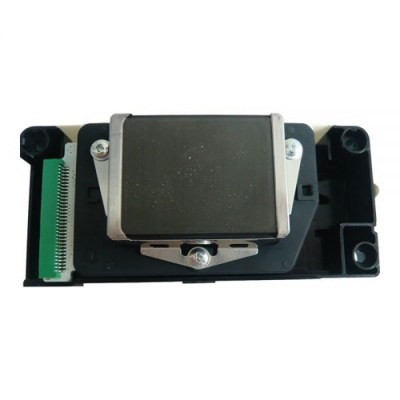

Original Mimaki JV33 / JV5 Printhead with Memory Board - M007947
Your shopping cart is empty!
Product Description
The Original Mimaki JV33 / JV5 Printhead with Memory Board (Part Number: M007947) is a complete, high-performance solution for your wide-format printing needs. Unlike standard versions, this package includes the integrated **Head Memory Board**, allowing your printer to automatically recognize and synchronize the Head ID for perfect voltage calibration. Delivered in a factory-sealed Mimaki package, this genuine Japanese component ensures maximum reliability and color consistency.
Advanced Micro-Piezo Precision
Engineered with advanced Micro-Piezo technology, this printhead features a dense layout of **1,440 nozzles** (8 lines x 180 nozzles). It utilizes variable droplet sizing—ranging from a fine **1.5 picoliter** for sharp details to **21 picoliters** for heavy color fills. This enables professional-grade **1440 dpi resolution** with smooth gradients and photo-realistic output on both eco-solvent and mild solvent ink systems.
Production Efficiency & Compatibility
- Integrated Memory Board: Simplifies installation by storing factory calibration data directly on the head, reducing the risk of manual input errors.
- Fast Firing Frequency: An optimized **8 kHz frequency** supports high-speed production modes without compromising drop placement accuracy.
- Versatile Chemical Resistance: Specifically treated to withstand the chemical properties of industrial **eco-solvent and mild solvent inks**.
Certified Printer Compatibility
This original Mimaki assembly is certified for use in the following models:
- Mimaki JV33 Series: JV33-130 / JV33-160 / JV33-260 (including BS ink versions)
- Mimaki JV5 Series: JV5-130S / JV5-160S / JV5-260S / JV5-320DS / JV5-320S
- Mimaki CJV30 Series: CJV30-60 / CJV30-100 / CJV30-130 / CJV30-160 (including BS ink versions)
- Specialty Models: TS5-1600AMF / TPC-1000 / TS3-1600
Technical Specifications
| Parameter | Factory Specifications |
|---|---|
| Technology | Micro-Piezo (Genuine Mimaki Japan) |
| Native Resolution | 1440 dpi |
| Droplet Size Matrix | Variable: 1.5 pl (Min) to 21 pl (Max) |
| Nozzle Configuration | 1,440 Nozzles (8 lines x 180 nozzles) |
| Components Included | Printhead + Head Memory Board + Head ID |
| Ink Compatibility | Eco-Solvent and Mild Solvent |
Professional Installation Advisory: To protect the internal electronics of your printer, it is highly recommended to replace the head cables (FFC) simultaneously with the new printhead. Installation should be performed by a certified technician to avoid damage caused by static discharge or incorrect voltage settings.
